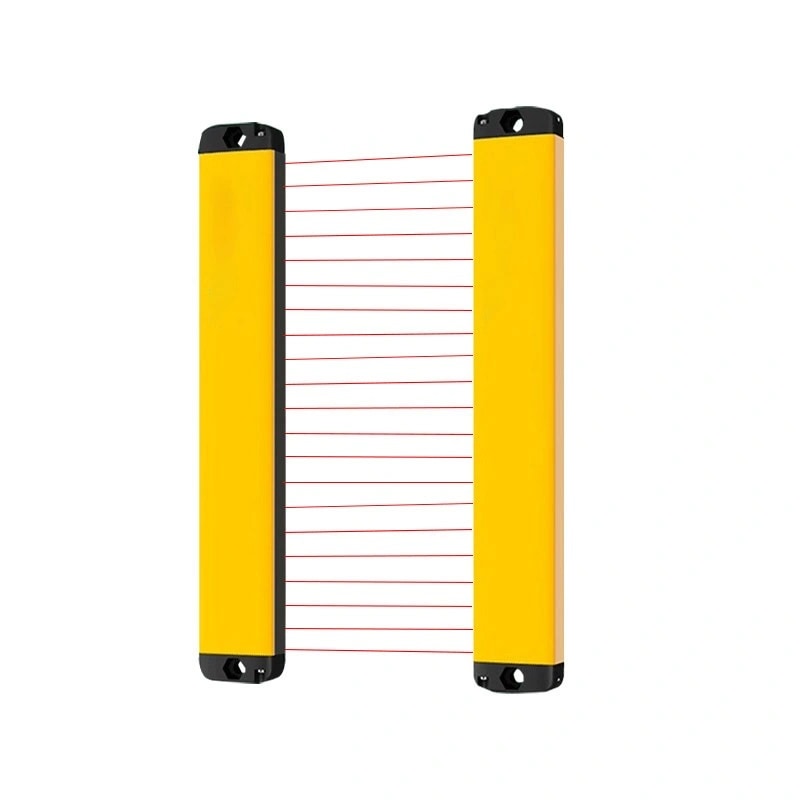

Safety Light Curtain
ART Side Ultra-Thin Series Raster
Model：ART侧面超薄系列光栅
The ART series side-emitting ultra-thin safety light curtain adopts a photosynchronous detection method and features an ultra-thin 13×26 mm cross-section structure, making it suitable for industrial automation safety protection scenarios with limited installation space and requiring side-emitting detection. The product supports selectable optical axis spacing of 10 mm, 20 mm, and 40 mm, with a detection height ranging from 100 mm to 3000 mm. It features NPN/PNP output, normally open/normally closed selectable, short-circuit protection, overcurrent protection, reverse connection protection, and real-time self-test functions. It can be directly connected to a PLC or intermediate relay for equipment safety protection, area detection, and personnel entry detection.
Send InquiryKey Features
- • Side-emitting light design, suitable for installation in confined spaces.
- • Ultra-thin 13×26 mm cross-section, compact structure.
- • Optical synchronous detection method, no synchronization line required.
- • Supports selectable optical axis spacing of 10 mm, 20 mm, and 40 mm.
- • Customizable detection height from 100 mm to 3000 mm.
- • NPN/PNP output, normally open/normally closed selectable.
- • Short-circuit, overcurrent, and reverse connection protection.
- • Real-time self-test function for more stable operation. Far-infrared design for strong resistance to ambient light interference.
- • IP65 protection rating, suitable for industrial applications.
- • Can be directly connected to PLCs or intermediate relays.
- • Supports 3D drawings and non-standard height customization.
Applications
- • Safety protection for automated equipment; safety protection for stamping equipment; protection of robotic arm work areas; tooling and fixture area inspection; personnel entry inspection; material passage inspection; assembly line safety inspection; opening protection for small equipment; side inspection in confined spaces; safety protection for packaging equipment; protection for non-standard automated equipment; safety protection for loading and unloading stations.

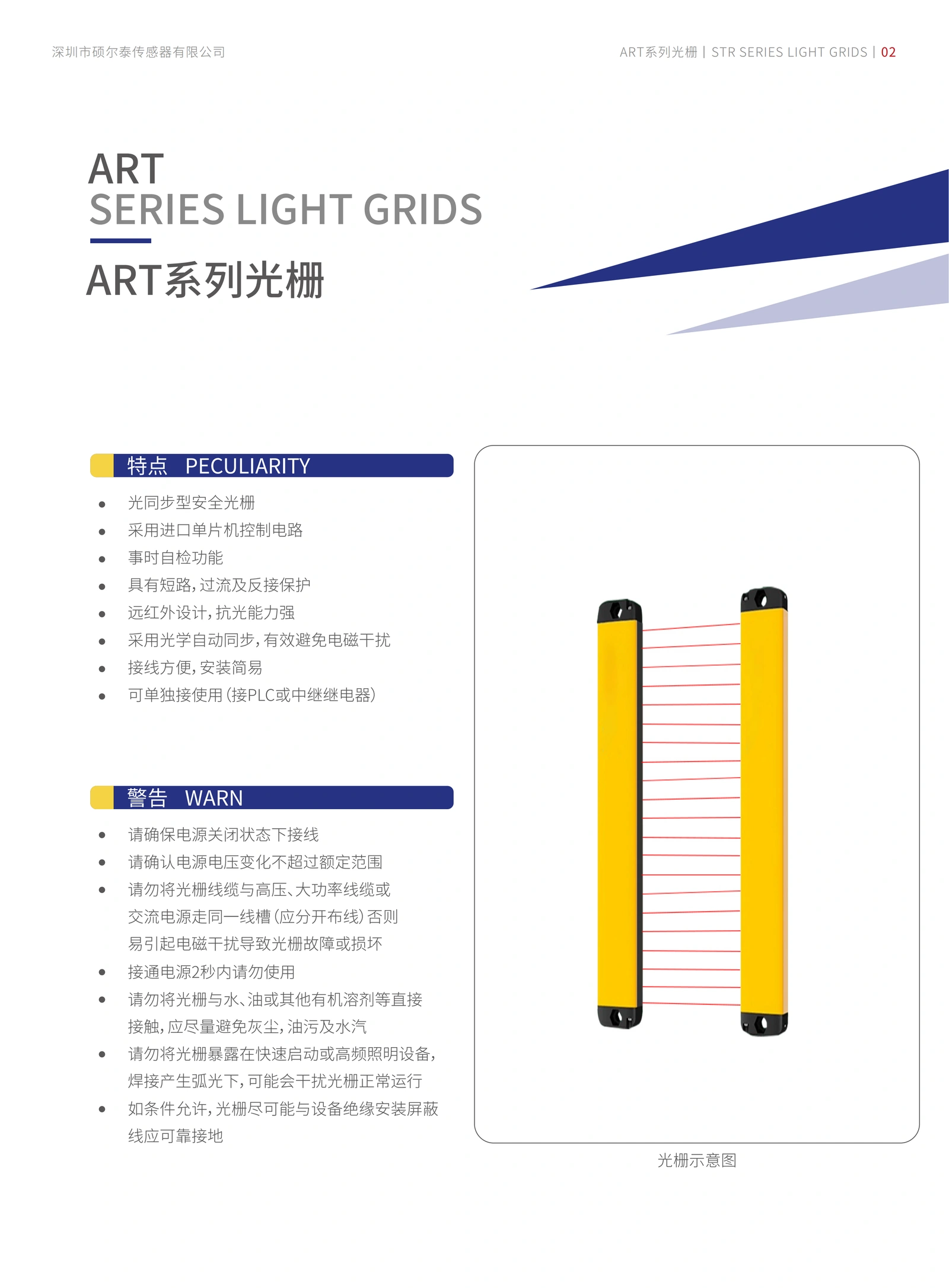

Specifications
Full specification text

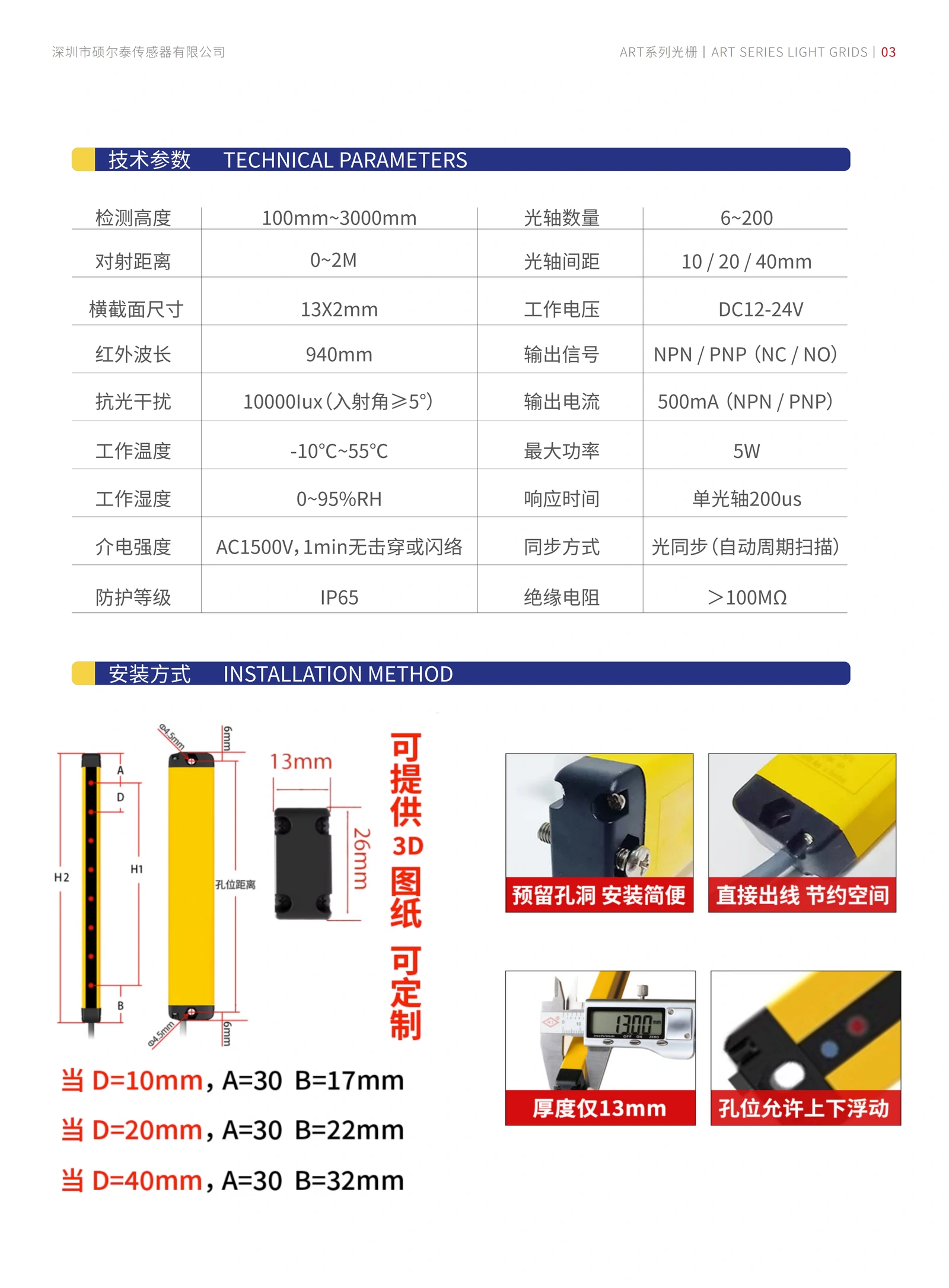

ART侧面出光超薄安全光栅技术参数
| 项目 | 参数 |
|---|---|
| 产品系列 | ART系列侧面出光超薄安全光栅 |
| 产品类型 | 光同步型安全光栅 / 安全光幕 / 光电保护装置 |
| 检测高度 | 100 mm～3000 mm |
| 光轴数量 | 6～200 |
| 光轴间距 | 10 mm / 20 mm / 40 mm |
| 对射距离 | 0～3 m |
| 横截面尺寸 | 13 × 26 mm |
| 红外波长 | 940 nm |
| 工作电压 | DC12-24V |
| 输出信号 | NPN / PNP，常开 NO / 常闭 NC 可选 |
| 输出电流 | 500 mA，NPN / PNP |
| 最大功率 | 5 W |
| 响应时间 | 单光轴 200 μs |
| 同步方式 | 光同步，自动周期扫描 |
| 抗光干扰 | 10000 lux，入射角≥5° |
| 工作温度 | -10℃～55℃ |
| 工作湿度 | 0～95%RH |
| 介电强度 | AC1500V，1 min无击穿或闪络 |
| 绝缘电阻 | ＞100 MΩ |
| 防护等级 | IP65 |
| 安装方式 | 预留孔位安装，支持上下浮动调节 |
| 接线方式 | 可直接接PLC或中间继电器 |
| 保护功能 | 短路保护、过流保护、反接保护 |
| 产品特点 | 侧面出光、超薄结构、光同步抗干扰、安装方便、支持定制 |
Model Selection
Full model selection text

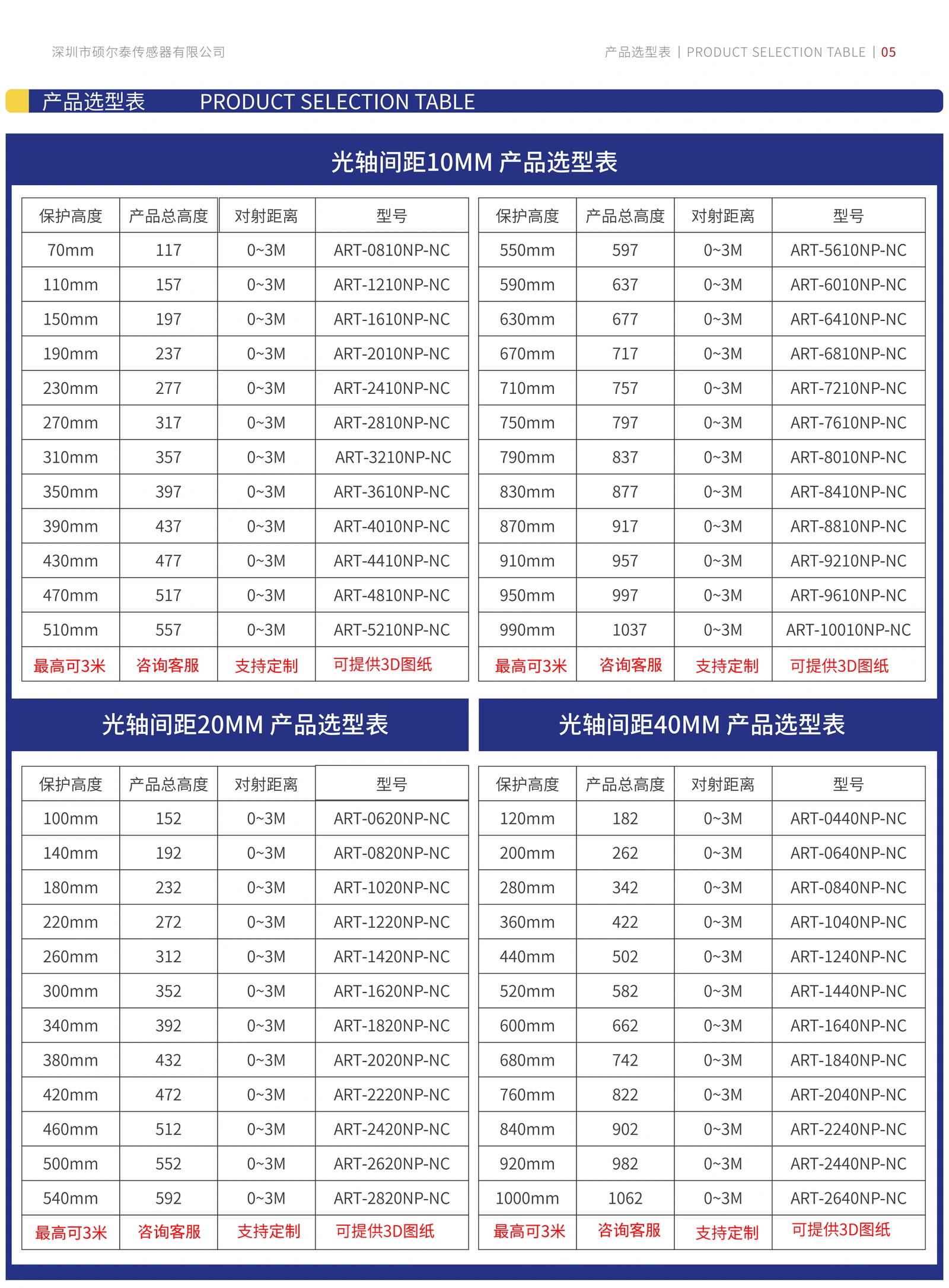

ART侧面出光超薄安全光栅选型表
光轴间距10 mm产品选型表
| 保护高度 | 产品总高度 | 对射距离 | 型号 |
|---|---|---|---|
| 70 mm | 117 mm | 0～3 m | ART-0810NP-NC |
| 110 mm | 157 mm | 0～3 m | ART-1210NP-NC |
| 150 mm | 197 mm | 0～3 m | ART-1610NP-NC |
| 190 mm | 237 mm | 0～3 m | ART-2010NP-NC |
| 230 mm | 277 mm | 0～3 m | ART-2410NP-NC |
| 270 mm | 317 mm | 0～3 m | ART-2810NP-NC |
| 310 mm | 357 mm | 0～3 m | ART-3210NP-NC |
| 350 mm | 397 mm | 0～3 m | ART-3610NP-NC |
| 390 mm | 437 mm | 0～3 m | ART-4010NP-NC |
| 430 mm | 477 mm | 0～3 m | ART-4410NP-NC |
| 470 mm | 517 mm | 0～3 m | ART-4810NP-NC |
| 510 mm | 557 mm | 0～3 m | ART-5210NP-NC |
| 550 mm | 597 mm | 0～3 m | ART-5610NP-NC |
| 590 mm | 637 mm | 0～3 m | ART-6010NP-NC |
| 630 mm | 677 mm | 0～3 m | ART-6410NP-NC |
| 670 mm | 717 mm | 0～3 m | ART-6810NP-NC |
| 710 mm | 757 mm | 0～3 m | ART-7210NP-NC |
| 750 mm | 797 mm | 0～3 m | ART-7610NP-NC |
| 790 mm | 837 mm | 0～3 m | ART-8010NP-NC |
| 830 mm | 877 mm | 0～3 m | ART-8410NP-NC |
| 870 mm | 917 mm | 0～3 m | ART-8810NP-NC |
| 910 mm | 957 mm | 0～3 m | ART-9210NP-NC |
| 950 mm | 997 mm | 0～3 m | ART-9610NP-NC |
| 990 mm | 1037 mm | 0～3 m | ART-10010NP-NC |
光轴间距20 mm产品选型表
| 保护高度 | 产品总高度 | 对射距离 | 型号 |
|---|---|---|---|
| 100 mm | 152 mm | 0～3 m | ART-0620NP-NC |
| 140 mm | 192 mm | 0～3 m | ART-0820NP-NC |
| 180 mm | 232 mm | 0～3 m | ART-1020NP-NC |
| 220 mm | 272 mm | 0～3 m | ART-1220NP-NC |
| 260 mm | 312 mm | 0～3 m | ART-1420NP-NC |
| 300 mm | 352 mm | 0～3 m | ART-1620NP-NC |
| 340 mm | 392 mm | 0～3 m | ART-1820NP-NC |
| 380 mm | 432 mm | 0～3 m | ART-2020NP-NC |
| 420 mm | 472 mm | 0～3 m | ART-2220NP-NC |
| 460 mm | 512 mm | 0～3 m | ART-2420NP-NC |
| 500 mm | 552 mm | 0～3 m | ART-2620NP-NC |
| 540 mm | 592 mm | 0～3 m | ART-2820NP-NC |
光轴间距40 mm产品选型表
| 保护高度 | 产品总高度 | 对射距离 | 型号 |
|---|---|---|---|
| 120 mm | 182 mm | 0～3 m | ART-0440NP-NC |
| 200 mm | 262 mm | 0～3 m | ART-0640NP-NC |
| 280 mm | 342 mm | 0～3 m | ART-0840NP-NC |
| 360 mm | 422 mm | 0～3 m | ART-1040NP-NC |
| 440 mm | 502 mm | 0～3 m | ART-1240NP-NC |
| 520 mm | 582 mm | 0～3 m | ART-1440NP-NC |
| 600 mm | 662 mm | 0～3 m | ART-1640NP-NC |
| 680 mm | 742 mm | 0～3 m | ART-1840NP-NC |
| 760 mm | 822 mm | 0～3 m | ART-2040NP-NC |
| 840 mm | 902 mm | 0～3 m | ART-2240NP-NC |
| 920 mm | 982 mm | 0～3 m | ART-2440NP-NC |
| 1000 mm | 1062 mm | 0～3 m | ART-2640NP-NC |

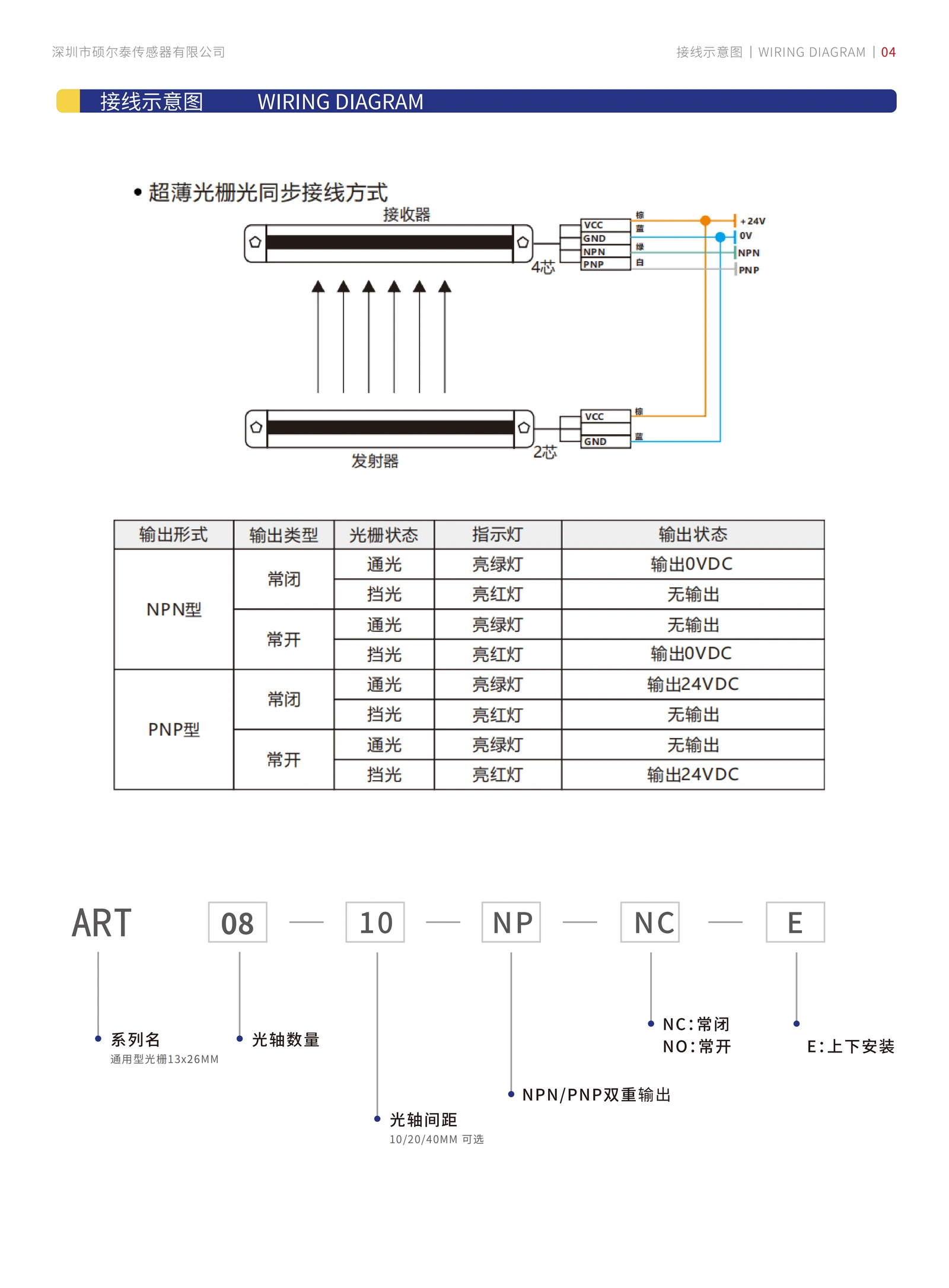

型号命名说明
| 型号段 | 含义 |
|---|---|
| ART | ART系列安全光栅 |
| 08 / 12 / 16等 | 光轴数量 |
| 10 / 20 / 40 | 光轴间距，单位mm |
| NP | NPN / PNP双输出 |
| NC | 常闭输出 |
| NO | 常开输出 |
| E | 上下安装方式 |
选型建议
10 mm光轴间距适合手指、小物体或更高分辨率安全检测；20 mm光轴间距适合手掌、手臂及常规设备开口保护；40 mm光轴间距适合区域防护、人员进入检测和较大物体通过检测。ART系列为侧面出光超薄安全光栅，适合安装空间较窄、需要贴边安装或设备结构受限的自动化防护场景。检测高度、光轴数量、输出方式、常开常闭和安装方式可根据现场需求定制。
