Product Category
Safety Light Curtain
Safety protection, area detection and machine interlock for automation lines.
Safety Light Curtain
Category Overview
Light curtains for machine safety, personnel protection and area detection.
Safety Light Curtain Products

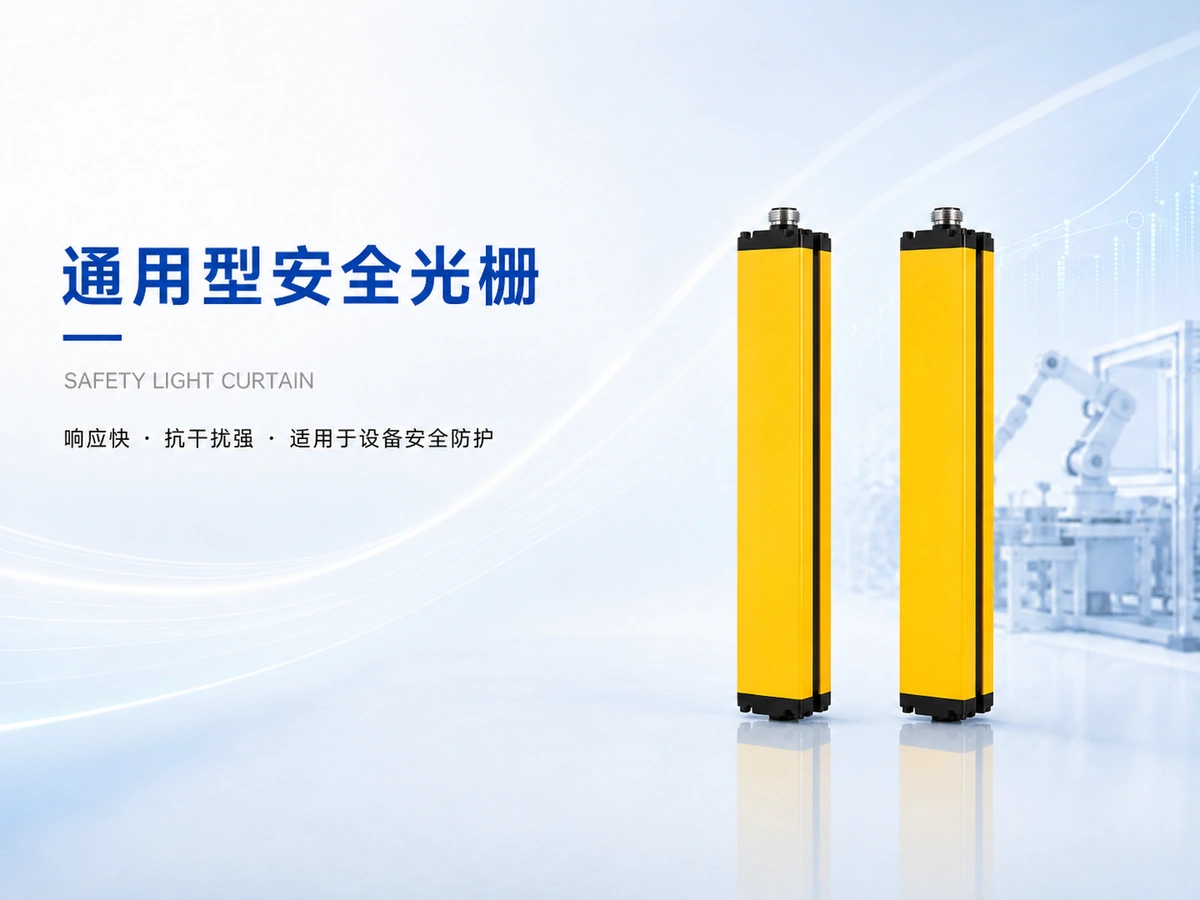

STR Universal Safety Light Curtain
The STR series general-purpose safety light curtains adopt optical synchronous detection and feature real-time self-testing, short-circuit protection, overcurrent protection, reverse connection protection, and far-infrared anti-interference capabilities. They are suitable for safety protection, area detection, and personnel entry detection in industrial automation equipment. The products support selectable optical axis spacings of 10 mm, 20 mm, and 40 mm, with detection heights ranging from 100 mm to 3000 mm. The through-beam distance is selectable from 0 to 3 m or 0 to 20 m. They support NPN/PNP output and normally open/normally closed options, and can be directly connected to PLCs or intermediate relays. They are suitable for safety protection of stamping equipment, robotic arms, assembly lines, packaging equipment, and non-standard automated equipment.

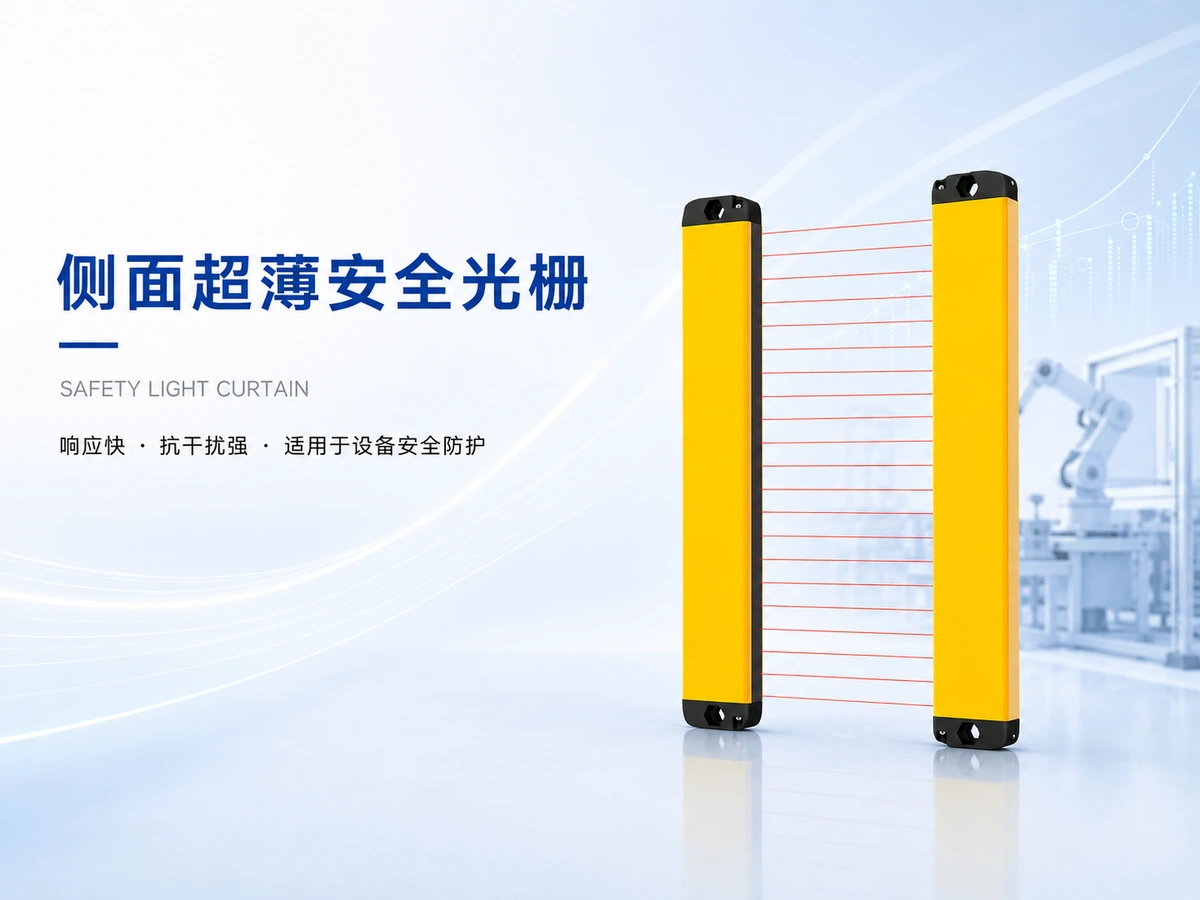

ART Side-Emitting Ultra-Thin Safety Light Curtain
The ART series side-emitting ultra-thin safety light curtain adopts a photosynchronous detection method and features an ultra-thin 13×26 mm cross-section structure, making it suitable for industrial automation safety protection scenarios with limited installation space and requiring side-emitting detection. The product supports selectable optical axis spacing of 10 mm, 20 mm, and 40 mm, with a detection height ranging from 100 mm to 3000 mm. It features NPN/PNP output, normally open/normally closed selectable, short-circuit protection, overcurrent protection, reverse connection protection, and real-time self-test functions. It can be directly connected to a PLC or intermediate relay for equipment safety protection, area detection, and personnel entry detection.

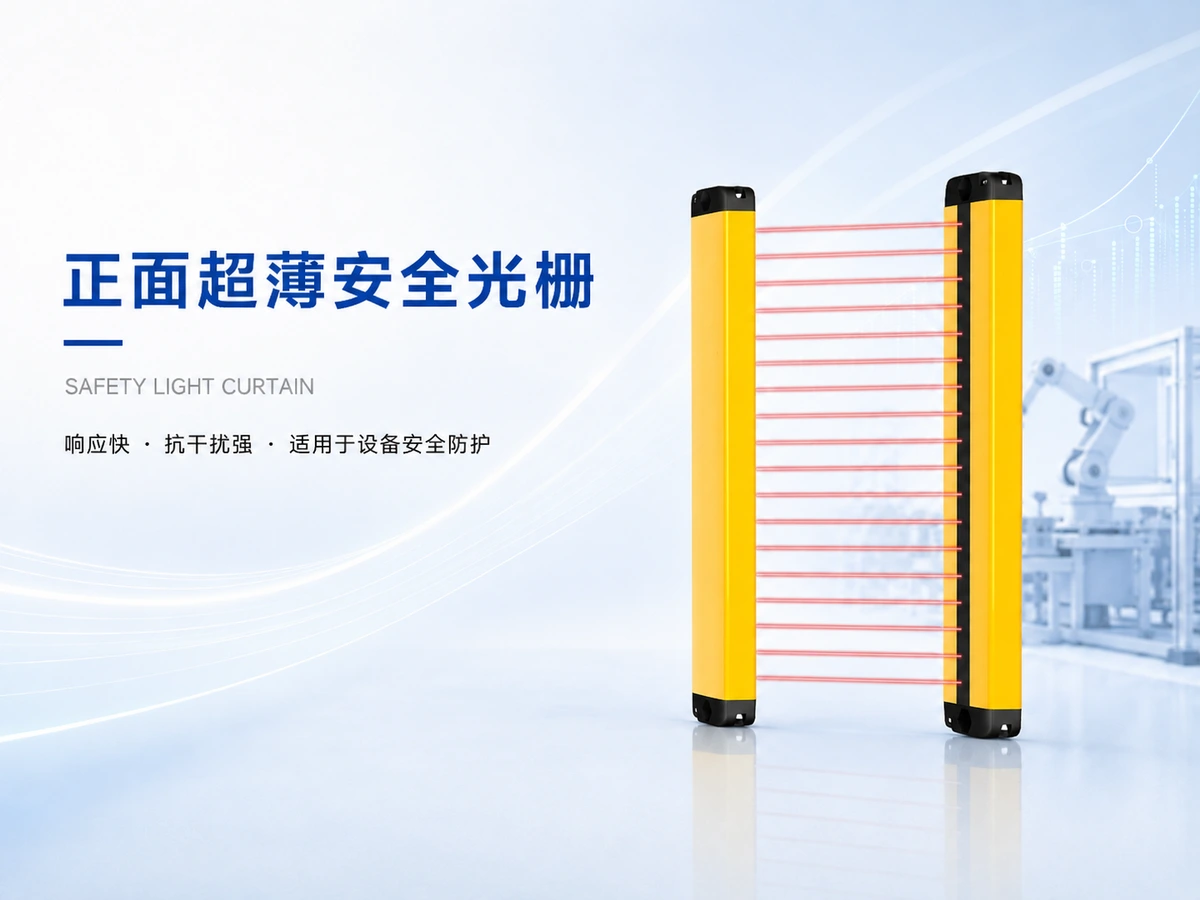

SRZ front ultra-thin safety light curtain
The SRZ series ultra-slim front-facing safety light curtain utilizes optical synchronization and features an ultra-slim profile, far-infrared interference immunity, real-time self-testing, and multiple protection functions. It is designed for safety guarding, area monitoring, and personnel intrusion detection in industrial automation equipment. The series offers selectable beam pitches of 10 mm, 20 mm, and 40 mm, with detection heights ranging from 100 mm to 3000 mm. It supports NPN/PNP outputs and selectable NO/NC configurations, allowing for direct connection to PLCs or intermediate relays. These light curtains are ideal for safeguarding stamping equipment, assembly lines, robotic arms, loading/unloading stations, and custom automation machinery.
Need Help Selecting Safety Light Curtain?
Share your application requirements and our sales or engineering team will follow up.
